How to Diagnose Issues Before Sunroof Assembly Replacement？
An automobile sunroof is an important configuration to improve the driving experience, but it will inevitably fail after a long period of use. Most failures do not need to directly replace the entire sunroof assembly. If you make a diagnosis in advance, you can accurately investigate the problem and avoid unnecessary parts replacement costs.

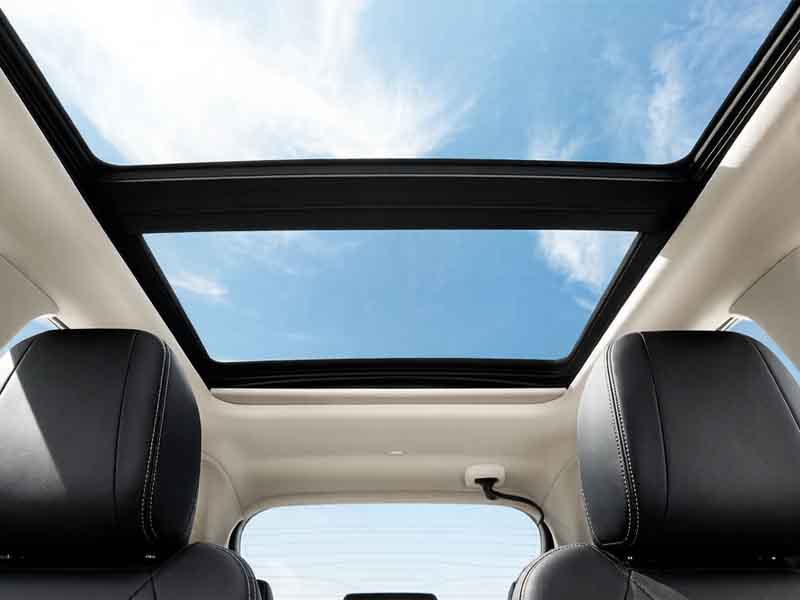

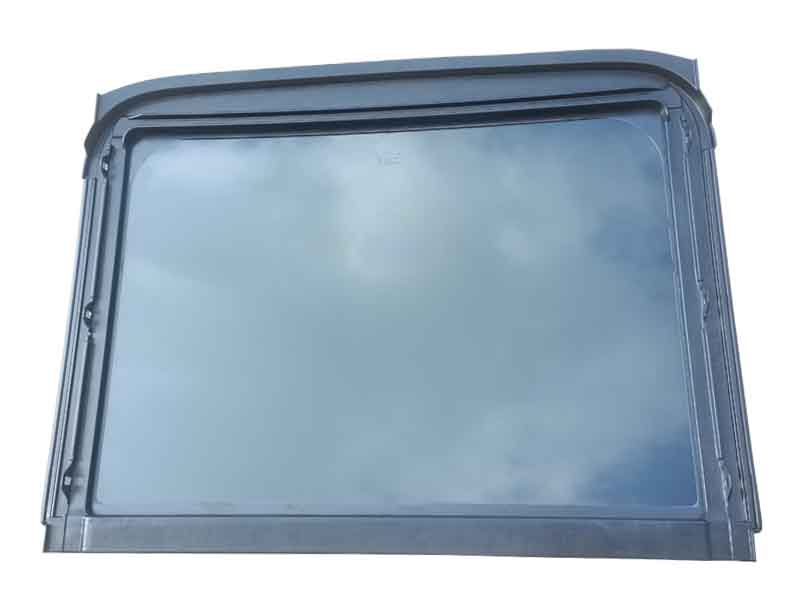

First of all, the basic appearance inspection and functional inspection of the vehicle sunroof system are carried out: we need to carefully observe whether there are cracks, damage, and other problems in the sunroof glass, and at the same time, check whether the sealing strips around the sunroof are aging, cracking, falling off, or unable to completely fit the slot due to deformation.
Next, open and close the sunroof several times, test the smoothness of its start-up and closing process, and pay attention to observe whether there is obvious blockage caused by jamming, abnormal friction, or position deviation. Through these preliminary inspection steps, we can have a rough judgment on the nature of the fault, and distinguish whether the problem is caused by the mechanical structure parts, such as the drive motor and the transmission gear, or by the sealing parts, such as the aging of the sealing strip and the deformation of the frame.
Next, the common fault points can be checked specifically. If the sunroof leaks, in addition to checking the rubber strip, the drainage holes and drainage pipes on both sides of the sunroof should be cleaned to confirm whether it is caused by drainage blockage, and the assembly does not need to be replaced directly; If the sunroof can’t be opened and closed normally, you can first check whether the control fuse and switch button of the sunroof are powered on, and then check whether the slide rail is stuck by dust and whether the pull wire is worn and broken. In many cases, you only need to clean the slide rail for lubrication and replace a single damaged small part to repair the problem. Only when the sunroof frame is irreversibly deformed, the core control module is damaged and cannot be repaired separately, or the broken glass cannot be replaced separately, is it necessary to replace the whole sunroof assembly.
| Failure Cause | Investigation Method |
| Track foreign body obstruction | Clean up track debris |
| Fault of electric drive system | Check the circuit connection and motor condition. |
| Aging deformation of sealing strip | Check the sealing strip and replace the aging and deformed sealing strip. |
| Wear of mechanical parts | Check mechanical parts and replace worn parts. |
Motor and circuit system detection
When the sunroof can be partially moved, but the operation is not smooth, the problem usually lies in the motor or circuit system. First, check whether the motor is stuck, and then test it again after applying special lubricating oil in the track. If the motor is weak, it may be that the carbon brush is badly worn, so it is necessary to replace the motor carbon brush or the whole motor assembly.
The fault of the circuit system needs to be detected by multimeter, and the voltage of the motor plug is mainly checked. If the voltage is lower than the standard value, it is necessary to check whether there is an open circuit or a short circuit in the line. In addition, the failure of the sunroof control module may also lead to abnormal operation, and the fault code can be read by the vehicle diagnostic instrument to locate the specific problem.
Cause analysis of abnormal sound and vibration
Although the abnormal sound of the sunroof does not affect the function, it will seriously affect the driving experience. Abnormal sound usually comes from rail wear, loose screws or aging parts. Listen carefully to the source of abnormal noise when opening the sunroof: if it is sharp friction noise, it may be insufficient rail lubrication; If it is a dull vibration sound, it may be that the sunroof frame screw is loose.
Take corresponding measures for different abnormal sounds: special grease can be applied to track abnormal sounds; If the frame is loose, you need to tighten the relevant screws; If the abnormal sound comes from between the glass and the frame, the tightness of the glass fixing screw can be adjusted. In addition, the abnormal sound of the sunroof sunshade is also common, which is usually caused by the wear of plastic parts in the sunshade track. The worn parts can be replaced to solve the problem.
FAQ
Q: When the sunroof can’t be opened at all, must the motor be broken?
A: Not necessarily. Apart from motor damage, open circuit and short circuit, control module failure, and the track of the sunroof is stuck, the sunroof cannot be opened. It is suggested to check the circuit and control module step by step before confirming the state of the motor.
Q: Do sunroofs need regular maintenance? What does maintenance mainly do?
A: It needs regular maintenance. Generally, it is recommended to maintain it once every six months to one year, mainly to clean up the dust and sundries in the track, replenish the track with grease, and check the tightness of the screws to avoid abnormal sound and sticking in advance.
Q: Is the sunroof leaking a fault and must it be repaired?
A: sunroofs are usually designed with drainage channels, and a small amount of water seepage is generally caused by drainage blockage, so it is enough to dredge the drainage holes; If the leakage is caused by the aging and deformation of the sealing rubber strip, the rubber strip needs to be replaced to avoid the damage of the interior decoration caused by the leakage.
