What is a Chicago Sunroof? The Practical Guide to the Pop-Up Sunroof
Among the various designs of automobile sunroofs, Chicago sunroofs have become a classic style because of their simple structure and lasting practicality. By definition, although the name has a regional identification, it is not the exclusive configuration of a specific region. “Chicago sunroof” is a common name widely used in the industry, and its technical specification name is pop-up ventilation sunroof, which is a manual operation panel installed in the front of the roof, and it is tilted backward and upward to realize air circulation. As a symbolic design element of the automobile industry from the 1980s to the 1990s, this configuration is still recognized by the market for its functional reliability.
The working principle of pop-up sunroof
Different from the complex structure of the modern electric sliding sunroof, the Chicago sunroof adopts a simple operation mechanism of mechanical transmission. Its main body is a solid glass or metal panel, which is connected to the roof through the front hinge. In operation, after the user unlocks the door through the crank, knob, or lever device near the roof lining, the rear edge of the panel is lifted upward to form a ventilation opening.
The lifting angle can be fixed in different gears through the buckle structure according to the demand, so as to adjust the ventilation volume. When closing, just flip the operating device in the opposite direction, and the rear edge of the panel will fall back and be locked again to complete the operation. The whole process does not need to rely on electronic components such as motors and circuits, and the pure mechanical structure reduces the failure probability and makes the maintenance cost lower.
Advantages of Chicago sunroofs
The pop-up sunroof is a model of functional design:
Perfect ventilation: it can form negative pressure, effectively exhaust the dirty air in the car, and avoid the strong wind and noise caused by opening the window at high speed.
Compared with the ventilation mode that ordinary windows can only lower the side glass, its ventilation position is located on the roof, and the air convection path is smoother, so that the direct blowing strong wind will not affect the riding experience of the occupants in the car, and additional wind noise will not be generated due to airflow disturbance, which ensures the air in the car to be updated while maintaining the comfortable environment in the car. Moreover, because of its simple structure, it will not be prone to problems such as track sticking and motor failure like electric sunroof. Even if it is used for many years, it can work normally as long as the hinge and buckle are simply lubricated regularly.
Simple maintenance: Because there is no hidden trouble of motor, track, or complex gear, it can be said to be the most reliable sunroof type.
Lightweight and space optimization: it is light in weight and does not need to occupy a deep roof space, thus retaining valuable interior head space.
The whole sunroof is triggered and positioned by purely mechanical buckle structure: when ventilation is needed, the front edge of the panel will be lifted up only by unlocking the locking device, and the lifting angle can be fixed at different gears through the buckle structure as required, so as to adjust the ventilation volume; When closing, just flip the operating device in the opposite direction, and the rear edge of the panel will fall back and be locked again to complete the operation. The whole process does not require the participation of additional electronic components, and the characteristics of the structure itself determine its lower failure probability and make daily maintenance easier.
Classic experience: it can increase the fun of outdoor driving, without having to bear the complicated structure and maintenance cost of a convertible.
Basic care: routine maintenance of the pop-up sunroof
The most taboo of any sunroof is long-term neglect. Here are some ways to keep it in good condition:
Cleaning the seal: wipe the rubber seal around the sunroof panel with a damp cloth regularly to remove dust and debris that may damage the waterproof performance.
Lubrication of mechanical parts: Apply a small amount of silicon-based lubricant to hinges and locks every year (avoid using grease or ordinary engine oil) to ensure smooth opening and closing.
Check the water leakage: after heavy rain or car washing, pay attention to whether there are any signs of moisture in the corner of the roof lining, as it is the key to finding the problem as soon as possible.
Troubleshooting:
Dealing with the problem of a stuck or leaking sunroof, even a simple pop-up sunroof may fail. The following is a DIY repair guide: If the sunroof is stuck and can’t be opened, it may be caused by dryness and dust accumulation on the hinge or latch. Do not forcibly operate at this time. Carefully clean the edge first, and then gently move the mechanical device back and forth after applying silicon-based lubricant. If the sunroof leaks into the cockpit, it is usually caused by the blockage of the drain pipe. There are small passages at the four corners of the sunroof tray for discharging water to the rear of the wheel well. The solution is to find the drainage hole (refer to the user’s manual), gently dredge it with compressed air or soft plastic thread, and do not use metal tools to avoid piercing the pipeline.
FAQ
Are “Chicago sunroofs” and “sunroofs” the same?
A: Not exactly. The term “sunroof” was originally coined by Ford Company to describe glass panel sunroofs (usually pop-up or sliding). With the passage of time, “sunroof” has become the general name of any glass sunroof, while “Chicago sunroof” refers to the pop-up vent style. All sunroofs in Chicago can be called sunroofs (if they are glass), but not all sunroofs are pop-up Chicago style.
If the sunroof in Chicago is broken, can it be repaired?

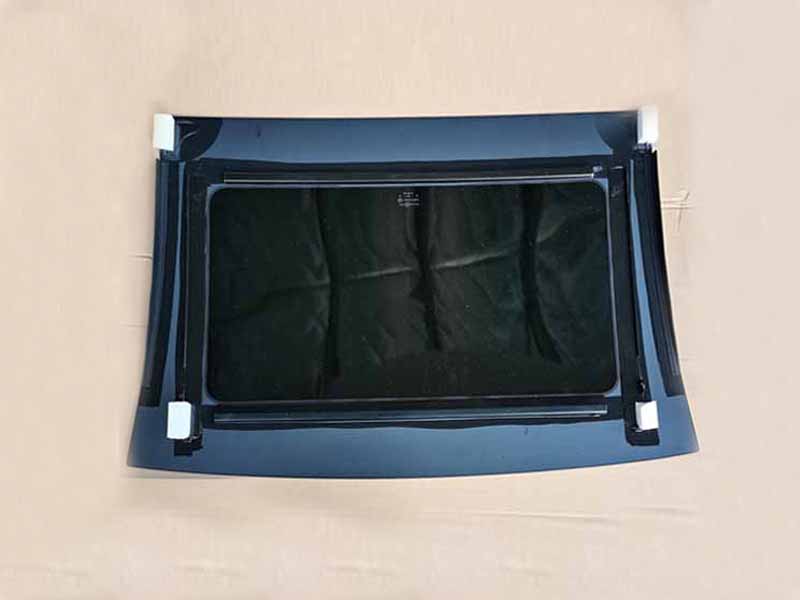

Yes, absolutely. Replacement glass or acrylic panels can be obtained from automotive glass experts or dealers. Compared with the power unit, the manual mechanism itself is usually simple and the maintenance cost is low.
Are cars with Chicago sunroofs more unsafe when they roll over?
A: No, the roof structure of the car is designed and reinforced around the sunroof opening. The pop-up panel itself is not a structural component. Modern automobile safety standards ensure that sunroofs, pop-up sunroofs or other sunroofs will not affect the crashworthiness of the roof.
